DIGITAL PRINTING SOLUTIONE

Detailed:

---

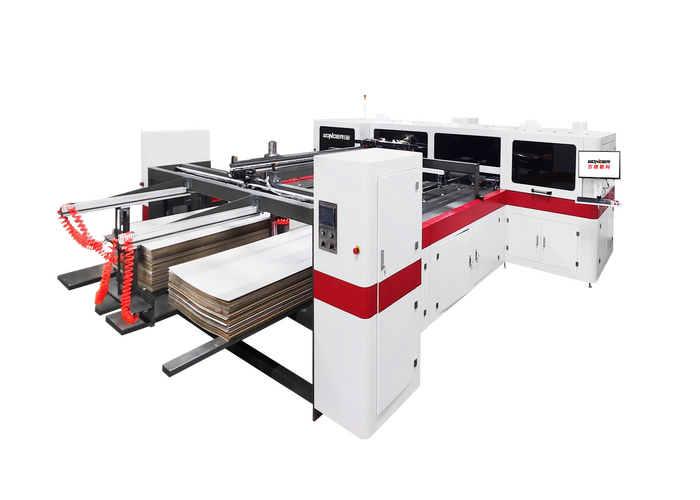

This is a wide-format digital inkjet color printing equipment based on multi-pass printing mode. It adopts automatic Feida receiving and feeding system, which greatly reduces labor cost. It adopts CMYK+W ink color scheme, which is suitable for printing materials with thickness of 0.2mm to 20mm. Solve the customer's high-end color printing needs for thin paper/coated paper, but also backward compatible with coated paper and yellow and white cattle board materials.

TMP 250-16A++

---

TMP 250++ multi pass digital printer series
Materials: all kinds of corrugated paperboard (kraft and bleached kraft, semi-coated board, honeycomb panel)
Accuracy: Basic Definition 1200dpi, multi-pass
Capacity: Up to 700㎡/h
TMP 250 series Multi Pass scanning high-quality digital printer, inkjet printing, printing width max 2500mm, length no limit, basic printing resolution 600dpi-1200dpi, printing speed faster, up to 700㎡/h-1400㎡/h, production efficiency around 1-1200 PCS/hour, cost-effective, your best selection for small and personalized orders.

TMP 250-16A++ Digital Printer Specifications
Article NO.	TMP 250-16A++
Printhead	Industrial-grade Micro-piezo highest printhead
Printhead quantity	16 pieces
Ink type	Special water-based dye ink, special water-based pigment ink
Color model	Cyan, Magenta, Yellow, Black, LC, LM, PL, OR
Medium distance	2mm-4mm
Printing resolution	≥360×1200 dpi
Printing efficiency	Max 700㎡/hour
Printing format	2500mm
Drying speed	Liner-board can be dry once print out
Working environment	20ºC-25ºC Indoor, Humidity 50%-70%
Ink supply	Automatic ink supply
Feeding mode	Automatic leading edge feeding, suction platform
Material thickness	1.5mm-35mm (max can be ordered to 50mm)
Operate system	Professional RIP system, professional printing system, Win10/11 system with 64 bit operating system or above
Power supply	About 14KW power: AC380±10%, 50-60HZ
Machine size	L×W×H: 3751×5294×1622 (mm)
Weight	3000KGS

TMP 250-16A+

---

Materials: all kinds of corrugated paperboard (kraft and bleeched kraft, honey comb panel)
Accuracy: Basic Definition 600dpi, multi-pass
Capacity: Up to 1400㎡/h
Detailed: WD250 series Multi Pass scanning high quality digital printer, inkjet printing, printing width max 2500mm, length no limit, basic printing resolution 600dpi-1200dpi, printing speed more fast, up to 700㎡/h-1400㎡/h, production efficiency around 1-1200 PCS/hour, cost-effective, your best selection for small and personalized orders.

Specification	Details
Article NO.	TMP 250-16A+
Printhead	Industrial-grade Micro-piezo highest printhead
Printhead Quantity	16 pieces
Ink Type	Special water-based dye ink, special water-based pigment ink
Color Model	Cyan, Magenta, Yellow, Black
Medium Distance	2mm-4mm
Printing Resolution	≥360*600 dpi
Printing Efficiency	Max 1400㎡/hour
Printing Format	2500mm
Drying Speed	Liner-board can be dry once print out, able to print on semi coated board if connect with drying system (optional)
Working Environment	20ºC-25ºC Indoor, Humidity 50%-70%
Ink Supply	Automatic ink supply
Feeding Mode	Automatic leading edge feeding, suction platform
Material Thickness	1.5mm-35mm (max can be ordered to 50mm)
Operate System	Professional RIP system, professional printing system, Win10/11 system with 64-bit operating system or above
Power Supply	About 18 KW power: AC380±10%, 50-60HZ
Machine Size	L*W*H: 4850*6100*1751 (mm)
Weight	5500 KGS

TMP 250-32A++

---

WD250++ multi pass digital printer series
Materials: all kinds of corrugated paperboard (kraft and bleached kraft, semi-coated board, honey comb panel)
Accuracy: Basic Definition 1200dpi, multi-pass
Capacity: Up to 1400㎡/h

Detailed

---

WD250 series Multi Pass scanning high quality digital printer, inkjet printing, printing width max 2500mm, length no limit, basic printing resolution 600dpi-1200dpi, printing speed more fast, up to 700㎡/h-1400㎡/h, production efficiency around 1-1200 PCS/hour, cost-effective, your best selection for small and personalized orders.

Article NO.	TMP 250-32A++
Printhead	Industrial-grade Micro-piezo highest printhead
Printhead quantity	32 pieces
Ink type	Special water-based dye ink, special water-based pigment ink
Color model	Cyan, Magenta, Yellow, Black
Medium distance	2mm-4mm
Printing resolution	≥360*1200 dpi
Printing efficiency	Max 1400㎡/hour
Printing format	2500mm
Drying speed	Liner-board can be dry once print out, able to print on semi coated board if connected with drying system (optional)
Working environment	20ºC-25ºC Indoor, Humidity 50%-70%
Ink supply	Automatic ink supply
Feeding mode	Automatic leading edge feeding, suction platform
Material thickness	1.5mm-35mm (max can be ordered to 50mm)
Operate system	Professional RIP system, professional printing system, Win10/11 system with 64 bit operating system or above
Power supply	About 18 KW power: AC380±10%, 50-60HZ
Machine size	L*W*H: 4850*6100*1751 (mm)
Weight	5500 KGS

TMP UV250-12A

---

UV250 multi pass digital printer series
Materials: Corrugated cardboard, wood, plastic board, hard materials which are flat and ink can be attached, etc. Special materials such as ceramic tile, metal plate, acrylic plate (some parts need to be replaced)
UV special ink: Cyan, Magenta, Yellow, Black, White

Detailed

---

WDUV250-12A Multi Pass width format high quality digital UV inkjet printing machine, uses heavy machine body, inkjet printing, special UV ink, vivid color and waterproof printing effect, CMYK+W color mode, max printing width 2500mm, length no limit, printing speed up to 260㎡/h with 300*600dpi, production efficiency around 1~260 PCS/hour, suitable for small and personalized orders which want high resolution and shiny color.

Article NO.	TMP UV250-12A
Printhead	Industrial-grade piezoelectric printhead
Printhead quantity	12 pieces
Ink type	Special UV curable ink
Color model	Cyan, Magenta, Yellow, Black, White
Medium distance	2mm-4mm
Printing resolution	≥360*600 dpi
Printing efficiency	300*600dpi: max 260㎡/H 300*900dpi: max 170㎡/H 300*1200dpi: max 130㎡/H
Media type	Hard materials such as cardboard, wood, plastic, etc. Special materials such as tiles, metal plate, acrylic board, etc. will need to change relevant parts
Printing format	2500mm
Drying speed	Dry once print out
Working environment	15ºC-32ºC Indoor, Humidity 40%-70%
Ink supply	Automatic continuous ink supply
Feeding mode	Automatic leading edge feeding, suction platform
Material thickness	1.5mm-35mm (max can be ordered to 50mm)
Operate system	Professional RIP system, professional printing system, Win10/11 system with 64 bit operating system or above
Power supply	About 18 KW power: AC380±10%, 50-60HZ
Machine size	L*W*H: 4850*6100*1751 (mm)
Weight	5500 KGS

TMP UV250-12A+

---

WDUV250 multi pass digital printer series
Materials: Corrugated cardboard, wood, plastic board, and other hard materials that are flat and ink-adhesive. Special materials such as ceramic tile, metal plate, and acrylic plate may require replacement of specific parts.
UV Special Ink: Cyan, Magenta, Yellow, Black, White

Detailed:

---

The WDUV250-12A+ is a multi-pass wide-format, high-quality digital UV inkjet printing machine. Built with a heavy-duty frame, it delivers vivid color and waterproof printing using special UV ink. Featuring a CMYK+W color mode, it supports a maximum printing width of 2500mm with no length limit. With a resolution of 300*600dpi, it achieves printing speeds of up to 300㎡/h and a production efficiency of approximately 1 to 300 pieces per hour. Ideal for small and personalized orders that require high resolution and glossy, vibrant output.

Article NO.	TMP UV250-12A+
Printhead	Industrial-grade piezoelectric printhead
Printhead quantity	12 pieces
Ink type	Special UV curable ink
Color model	Cyan, Magenta, Yellow, Black, White
Medium distance	2mm-4mm
Printing resolution	≥360*300 dpi
Printing efficiency	300*600dpi: max 300㎡/H 300*900dpi: max 200㎡/H 300*1200dpi: max 150㎡/H
Media type	Hard materials such as: cardboard, wood, plastic, etc. Special materials such as tiles, metal plate, acrylic board, etc. will need to change relevant parts
Printing format	2500mm
Drying speed	Dry once print out
Working environment	15ºC-32ºC Indoor, Humidity 40%-70%
Ink supply	Automatic continuous ink supply
Feeding mode	Automatic leading edge feeding, suction platform
Material thickness	1.5mm-35mm (max can be ordered to 50mm)
Operate system	Professional RIP system, professional printing system, Win10/11 system with 64 bit operating system or above
Power supply	About 18 KW power: AC380±10%, 50-60HZ
Machine size	L*W*H: 4850*6100*1751 (mm)
Weight	5300 KGS

WDUV250 Multi Pass Digital Printer Series

---

Materials: Corrugated cardboard, wood, plastic board, and other hard materials that are flat and can hold ink. Special materials such as ceramic tile, metal plate, and acrylic plate may require replacement of specific parts.
UV Special Ink: Cyan, Magenta, Yellow, Black

Detailed:

---

The WDUV250-12A is a multi-pass, wide-format, high-quality digital UV inkjet printing machine. It features a heavy-duty machine body and uses special UV ink to deliver vivid color and waterproof printing results. With CMYK color mode, it supports a maximum printing width of 2500mm and unlimited length. Operating at a resolution of 300×600dpi, it can reach speeds up to 520㎡/h, with a production efficiency of around 1 to 520 pieces per hour. This printer is ideal for small and personalized orders requiring high resolution and vibrant, shiny output.

Article NO.	TMP UV250-16A
Printhead	Industrial-grade piezoelectric printhead
Printhead quantity	16 pieces
Ink type	Special UV curable ink
Color model	Cyan, Magenta, Yellow, Black
Medium distance	2mm-4mm
Printing resolution	≥360×600 dpi
Printing efficiency	300×600dpi: max 520㎡/h 300×900dpi: max 350㎡/h 300×1200dpi: max 260㎡/h
Media type	Hard materials such as: cardboard, wood, plastic, etc. Special materials such as tiles, metal plate, acrylic board, etc. will need relevant parts replaced
Printing format	2500mm
Drying speed	Dry once print out
Working environment	15ºC–32ºC Indoor, Humidity 40%–70%
Ink supply	Automatic continuous ink supply
Feeding mode	Automatic leading edge feeding, suction feeding
Material thickness	1.5mm–35mm (max can be ordered to 50mm)
Operate system	Professional RIP system, professional printing system, Win10/11 64-bit or above
Power supply	About 18 KW: AC380±10%, 50–60HZ
Machine size	L×W×H: 4850×6100×1751 (mm)
Weight	5500 KGS

TMP UV250-16A+

---

WDUV250 multi pass digital printer series

Materials: Corrugated cardboard, wood, plastic board, the hard materials which flat and ink can be attached, etc. Special materials such as ceramic tile, metal plate, acrylic plate—some parts need to be replaced.

UV special ink: Cyan, Magenta, Yellow, Black

Detailed

---

WDUV250-12A Muti Pass width format high quality digital UV inkjet printing machine, use heavy machine body, inkjet printing, special UV ink, vivid color and waterproof printing effect, CMYK color mode, max printing width 2500mm, length no limit, printing speed up to 600㎡/h with 300*600dpi, production efficiency around 1~600 PCS/hour, suitable for small and personalized orders which want high resolution and shiny color.

Article NO.	TMP UV250-16A+
Printhead	Industrial-grade piezoelectric printhead
Printhead quantity	16 pieces
Ink type	Special UV curable ink
Color model	Cyan, Magenta, Yellow, Black
Medium distance	2mm–4mm
Printing resolution	≥360×600 dpi
Printing efficiency	300×600dpi: max 600㎡/h 300×900dpi: max 400㎡/h 300×1200dpi: max 300㎡/h
Media type	Hard materials such as cardboard, wood, plastic, etc. Special materials such as tiles, metal plate, acrylic board, etc. require replacement of relevant parts
Printing format	2500mm
Drying speed	Dry once print out
Working environment	15ºC–32ºC Indoor, Humidity 40%–70%
Ink supply	Automatic continuous ink supply
Feeding mode	Automatic leading edge feeding, suction feeding
Material thickness	1.5mm–35mm (max can be ordered to 50mm)
Operate system	Professional RIP system, professional printing system, Win10/11 64-bit or above
Power supply	About 18 KW: AC380±10%, 50–60HZ
Machine size	L×W×H: 4850×6100×1751 (mm)
Weight	5500 KGS
