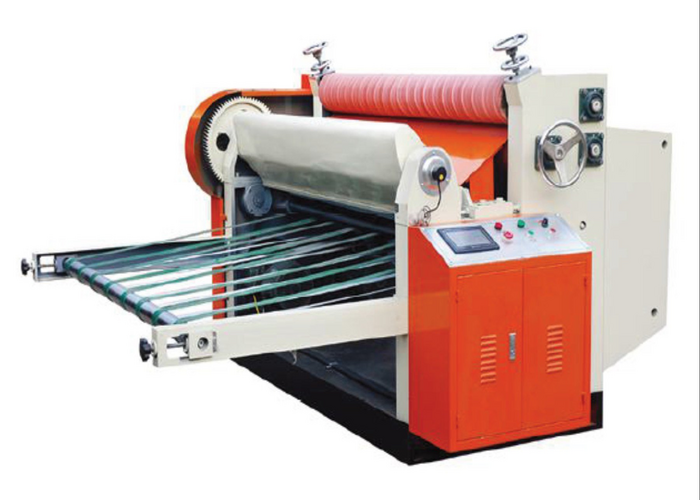

SEMI-AUTOMATIC CORRUGATOR

Features:

• Max paper width: 2600 mm
• Four roll type pasting machine
• Pasting roll wall thickness: 12 mm
• Hand wheel adjusting, easy operation

Features:

• Heavy duty
• Electric Motor, 2 HP
• Starter
• Reversing Switch
• Size – 1700mm x 2600mm

Features:

Adopt front creaser, back side double gum roll lead, paper running smoothly.

Slitting parts: Adopt tungsten alloyed blade, knife edge is very smooth, long working life, board edge smooth, no crushing and burr-free.

Creaser parts: Adopt a point creaser, creasing gap synchronous adjust, good creaser, easy bending.

Electric rectifier, easy operation, suitable for different types of paperboard.

Grinding device: Adopt auto or manual two method, can be used to grind and work together, improving working effective.

The electric element adopts a famous brand.

Technical parameter:

Features:

1. Semi-auto Chain feeding.

2. Synchronous adjusting the slotting blade, save the adjusting time, Manual adjusting the Creasing unit. The Creasing unit linkage moving with the slotting unit.

3. Electric phase: 360 degree planetary gear electric phase front or back moving adjustment. Adopt motor micro adjusting device, Easy operation, adjusting accuracy, lock reliable, slotting smooth.

4. Corner cutting blade special design and manufacturing, long working life.

5. All the transmission roller and shaft hard chrome plated.

6. Gear transmission adopt non-clearance fit, prevent the error of gear adjusting, concentrate supply oil auto lubrication, reduce the noise, long work life.

7. Wallboard thickness: 40mm.

8. Equipped with counter, auto counting the quantity of paperboard.

9. Electric element: Delta inverter, another adopt CHINT or CHINAPEOPLE.

Technical Parameter:

Feeding Unit

Feeding part transfers cardboard to the printing roller by 5 conveyors. Chain feeding with feeder operation must maintain the same level during operation. The right and left gauges ensure and control the cardboard gradient. The size of the gauge is decided by the cardboard width, based on the bisection from the printing center line to the ends.

Printing Unit

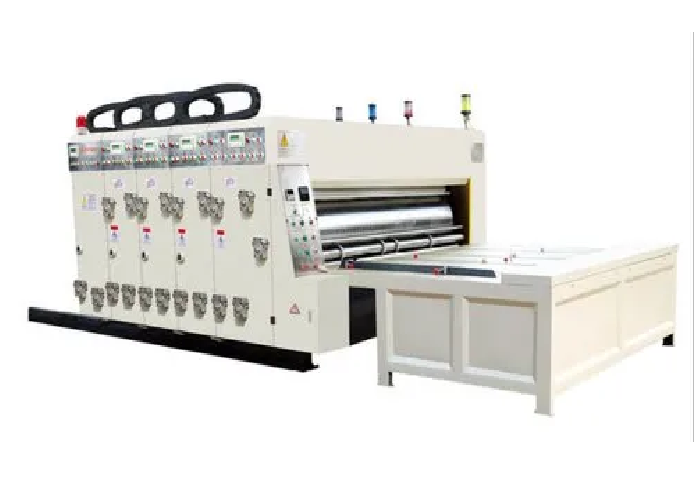

Printing Roll

Steel tube surface grinding with hard chrome plating. The roll is balance-corrected to ensure steady operation. The fixed roll version axis allows loading and unloading of the printing roller using a pedal switch and electric control turning point.

Printing Pressure Roll

Steel tube surface grinding with hard chrome plating. It is balance-corrected to work steadily. The printing pressure roller clearance is manually adjusted with a dial, and the adjustment range is 0–12mm.

Feeding Roll

Upper roller: External diameter is 159mm, made of thick-wall steel tube, with three paper rings.
Lower roller: External diameter is 159mm, thick-wall, surface ground, and hard chrome plated.
Feeding roller clearance is manually adjusted with a dial; adjustment range is 0–12mm.

Anilox Roll

External diameter is 156mm. The steel tube is surface ground, pressure-anilox treated, and hard chrome plated. It is balance-corrected for steady performance. LPI options are 220 or 240, depending on customer request (maximum LPI is 250).
Equipped with a pneumatic automatic lift-and-down device: the anilox roller lifts to touch the printing roller when feeding, and separates when feeding stops.

Rubber Roll

External diameter is 156mm. The steel tube is surface-packed with resistance rubber and balance-corrected. The rubber is specially ground to deliver good ink transfer effect.

Product Classification:

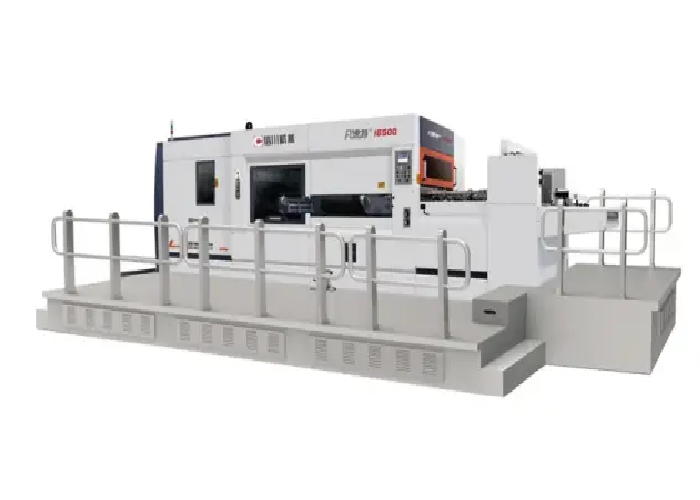

Semi automatic die-cutting machine

Release Time:

2024-08-05

Product Introduction:

BMY1300/1500/1650/2000 semi-automatic flatbed die-cutting machine

Features:

ML-930/1100/1200/1300/1400/1500Manual die cutting and creasing machine

Features:

TECHNICAL PARAMETERS:

Main Features

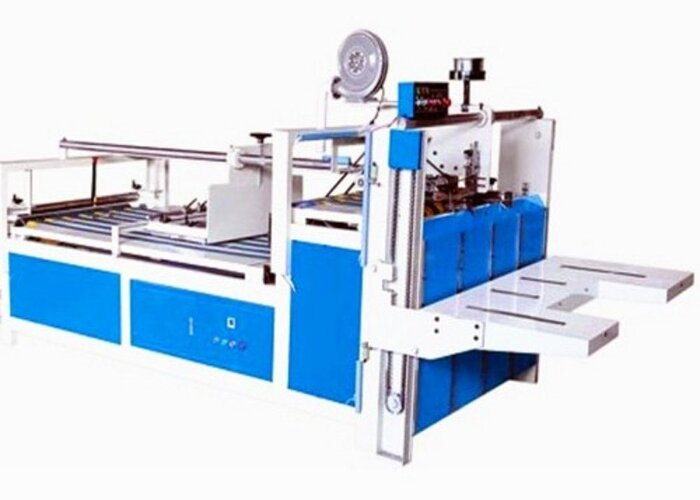

• This corrugated box folder gluer is used to bond the folded corrugated board with adhesive. It offers high speed and low cost, being 10 times cheaper than carton stapling.
• Automatic counting is used in the stacking process. Finished products (1–99 sheets) can be moved to the conveyor end based on the set quantity, making bundling easier.
• A draught fan is included for air drying, which speeds up carton bonding and reduces defects.
• Only two operators are needed for the simple process from gluing to organized placement, which helps reduce labor costs.

Product Details

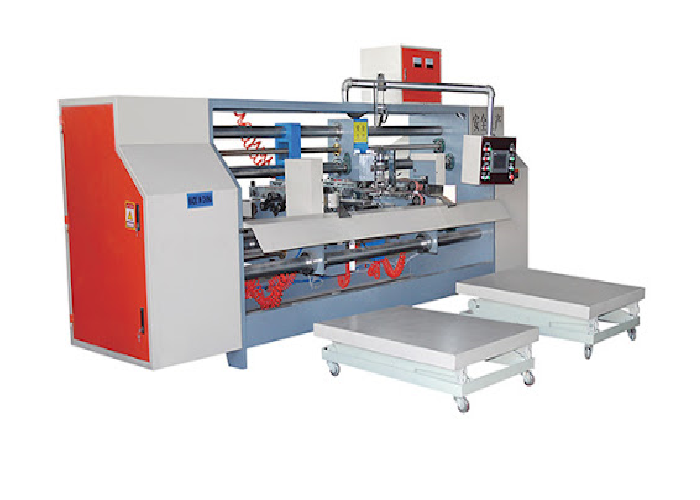

Model No.: Stitching Machine

Driven Type: Electric

Speed: 500 Nails/Min

Keyword: Double Servo System

Nail: Single, Double, Strengthen Nail Are Available

Advantage: Quickly Switch Order in a Minute

Main Function: Corrugated Carton Box Making

Specification: 2800mm × 2600mm

Type: Stitcher

Automatic Grade: Semi Automatic

Stitching Pitch: 30–120mm

Number of Stitching: 1–99

Carton Type: Stitching Whether the Carton Has Cover or Not

Features:

Features:
