Item	Specification

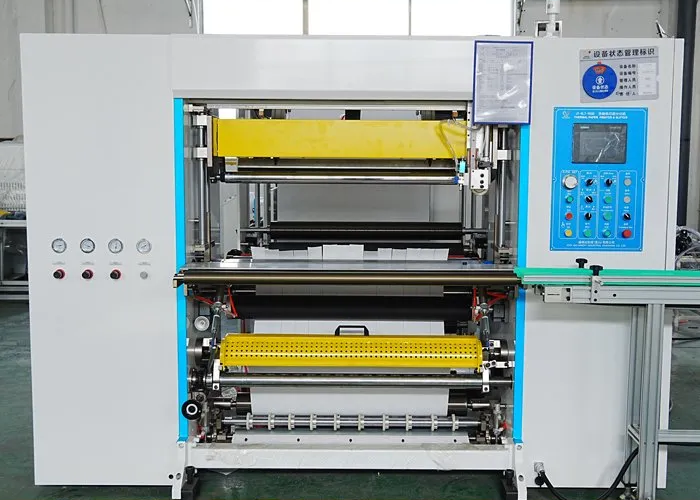

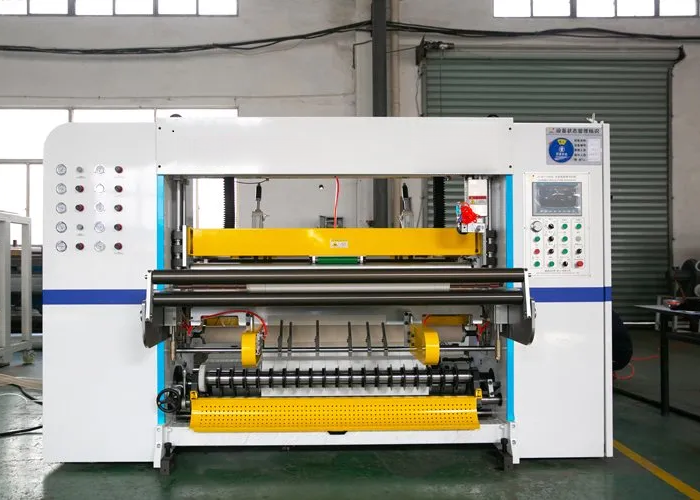

SLT-900C thermal cash register paper roll slitting machine
Max. Unwinding Width	900mm
Max. Unwinding Diameter	1000mm
Max. Rewinding Diameter	300mm
Min. Slit Width	25mm
Max. Speed	300m/min
Thermal Paper Thickness	35gsm - 120gsm
Weight	2000Kg
Voltage/Power	380V/50Hz, 7.5Kw (Voltage is customizable)
Dimension	2000mm x 2000mm x 1500mm

JT-SLT-900C thermal cash register paper roll slitting machine is able to make fax roll, cash register roll, ATM roll, ECG roll, till roll, POS roll, etc.
Unwinding Section	Shaftless hydraulic jumbo roll loading unit. Fully automatic tension controller. 20kg/m2 electromagnetic brake from Taiwan. Web guiding photoelectric sensor. Direction adjustable balancing roller, it ensures the roller itself always keep in tight touch with the web surface.

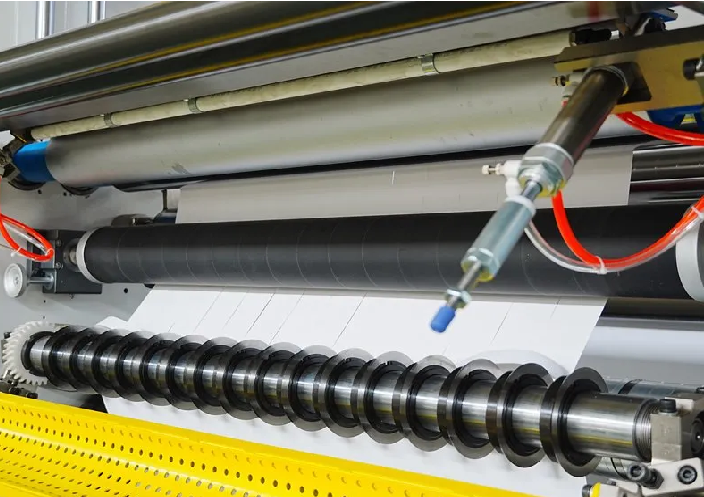

Slitting Section	The upper circular knives are fixed by screws, and the lower circular knives are fixed by the aluminum spacer, cutting precision can be guaranteed. The rotary encoder automatically metering slit length.

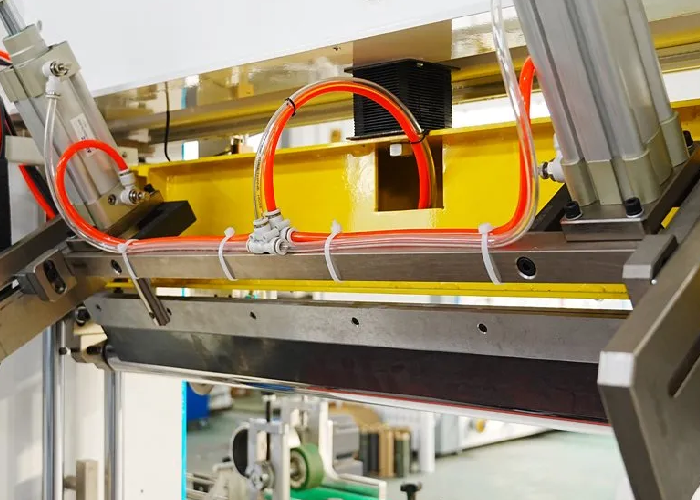

Rewinding Section	Automatic tucker tucks the tail, convenient for quickly trigger rewinding. 90° vertical lay-on roller, capable of moving up and down, ensures more balanced left and right pressure, wider rewinding diameter could be realized. The overlapping problem could be avoided with a banana roller.
Controlling Section	Siemens PLC module, touch control screen, and graphic user interface (HMI). Yaskawa AC drives for Siemens master motor. Schneider low voltage electrical appliances.
Waste Removing	Edge waste blower through expulsion tube.

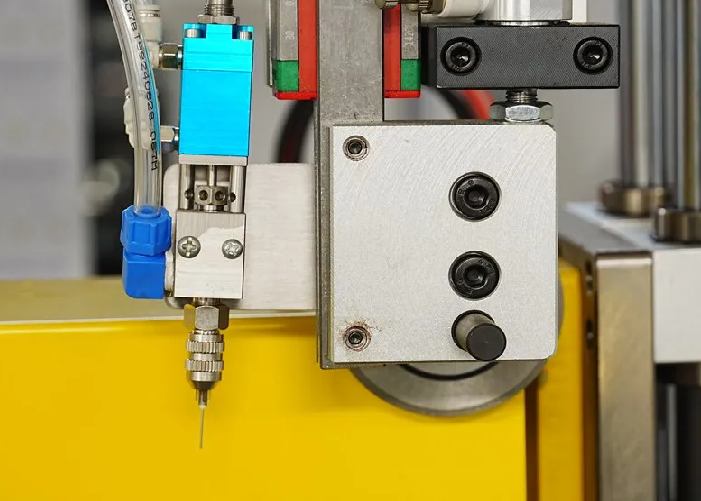

Optional Parts	Safety guard. 4 corners emergency switches. Automatic core loader. Blower and shredder. Automatic tail cutting and gluing unit.
