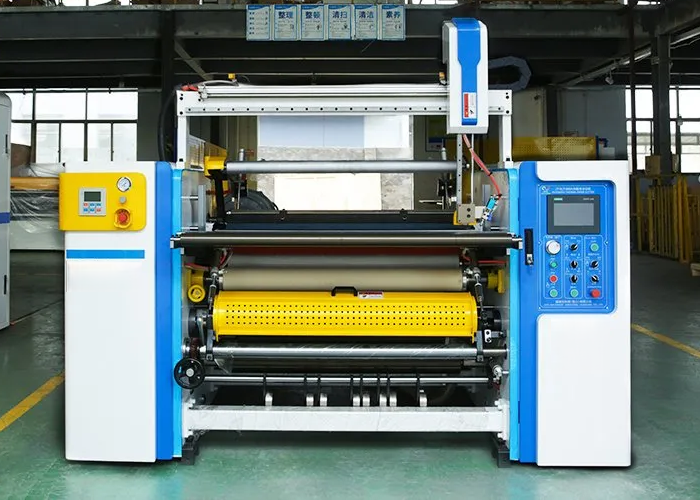

| Item | JT-SLT-900A thermal paper slitting rewinding machine |
|---|
| Max. Unwinding Width | 900mm |
|---|
| Max. Unwinding Diameter | 1000mm |
|---|
| Max. Rewinding Diameter | 300mm |
|---|
| Min. Slitting Width | 25mm |
|---|
| Max. Machine Speed | 210mm/min |
|---|
| Main Power | 3.5Kw |
|---|
| Unwinding Shaft | 3″ air expanding shaft |
|---|
| Rewinding Shaft | 0.5″, 1″ or as your request |
|---|
| Weight | 2500Kg |
|---|
| Overall Dimension | 2050mm x 1700mm x 1500mm |
|---|

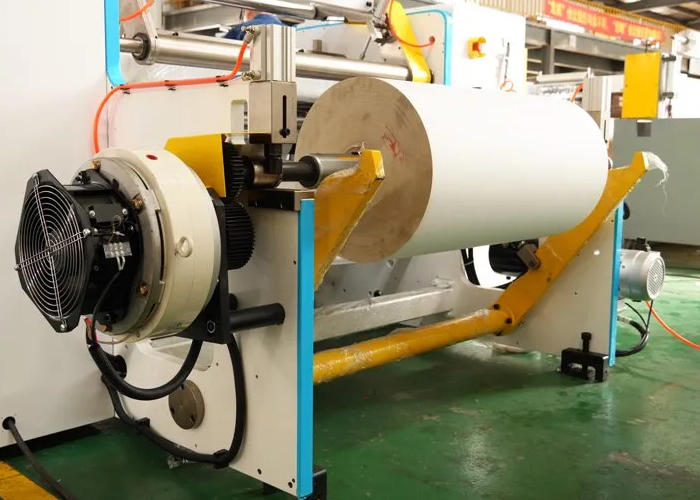

Unwinding Section
- Pneumatic control automatic jumbo roll loading
- Banana/spreader roller to avoid overlapping and ensure smooth edge
- Electromagnetic brake from Taiwan
- Ultrasound EPC (edge position controller) from Taiwan
- Fully automatic tension controller

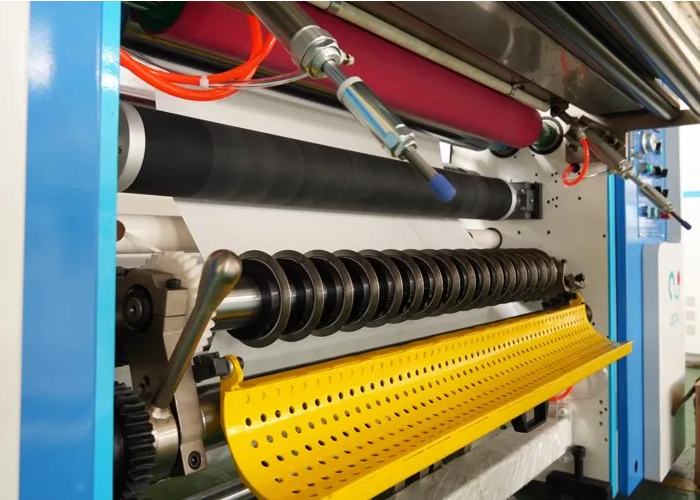

Slitting Section
- Disc blades fixed by screw, easy to adjust
- Adjustable/removable lower blade shaft
- Automatic meter counting with stop feature
Rewinding Section
- 0.5″ and 1″ shafts available
- Surface winding method
- Auto tucker system
Controlling Section

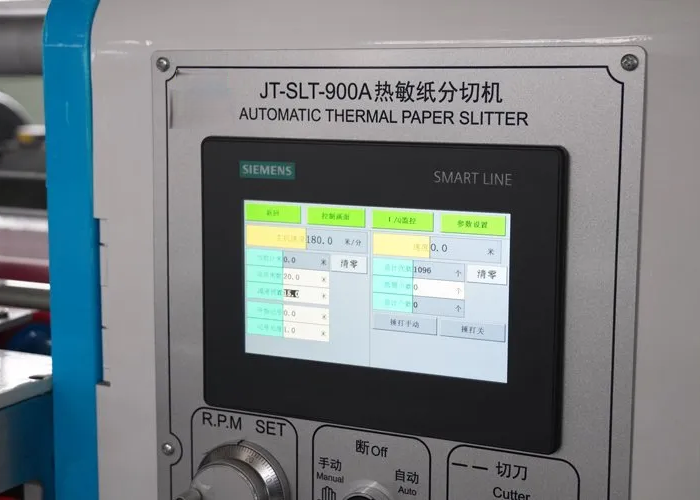

- Siemens PLC and graphic HMI touch screen
- All parameters displayed on screen
- Schneider low voltage components
- EPC system for accurate web guiding
Waste Disposal
- Air blower to remove waste material (1.5Kw)
- Stainless steel air pipe for durability
| Name |
Model |
Pieces |
Remark |
| Computer System |
PLC (Siemens) |
1 Set |
Siemens |
| Motor |
|
1 Set |
Siemens from Germany |
| Frequency Inverter |
|
1 Set |
YASKAWA From Japan |
| Unwinding Shaft |
3″ air expanding shaft |
|
Pneumatic Loading |
| Rewinding Shaft |
0.5″, 1″ or as your request |
|
|
| Upper/Lower Round Knife |
|
15 Sets |
|
| Electromagnetic Brake |
|
1 Set |
From Taiwan |
| Tension Sensor |
|
2 Sets |
|
| Tension Controller |
|
1 Set |
Fully Automatic |
| Chuck |
Self-expandable chuck |
1 Set |
From Taiwan |
| Magnetic Clutch |
|
2 Sets |
From Taiwan |
| Low Voltage Electrical Switch |
|
|
SCHNEIDER |
| Blower |
|
1 Set |
China |
| Cylinder |
|
|
Autg from Taiwan |
| Precision Regulator |
|
|
SMC from Japan |
| Relay |
|
|
Omron |
| Spacer |
As your request |
As your request |
China |
| EPC |
|
1 Set |
From Taiwan |
