SLT-1400FA Fully Automatic Thermal Paper Roll Slitting Packaging Machine
One-stop Thermal Till Paper Roll Production Finishing Line
- Fully automatic intelligent machine line for thermal cash rolls
- More till roll output capacity in 8h
- No need dedicated operator, labor cost -95%
- Core feeder, slitter rewinder, conveyor, package
- Optional inline printing and buffer
| Item | SLT-1400FA Fully Automatic Thermal Paper Roll Slitting Packaging Machine |
|---|---|
| Unwinding Width | 1400mm |
| Unwinding Diameter | 1200mm |
| Max. Rewinding Diameter | 300mm |
| Min. Slit Width | 15mm |
| Max. Speed | 300m/min |
| Unwinding Shaft | Shaftless unwind stands |
| Rewinding Shaft | 0.5”, 1” are available (or as your request) |
| Voltage | 3 phase, 380V, 50Hz |
| Torque | 100Nm |
| Power | 20Kw |
| Weight | 4000Kg |
| Dimensions (L×W×H) | 5500mm x 2200mm x 1880mm |
- SLT-1400FA Fully Automatic Thermal Paper Roll Slitting Packaging Machine is able to make:

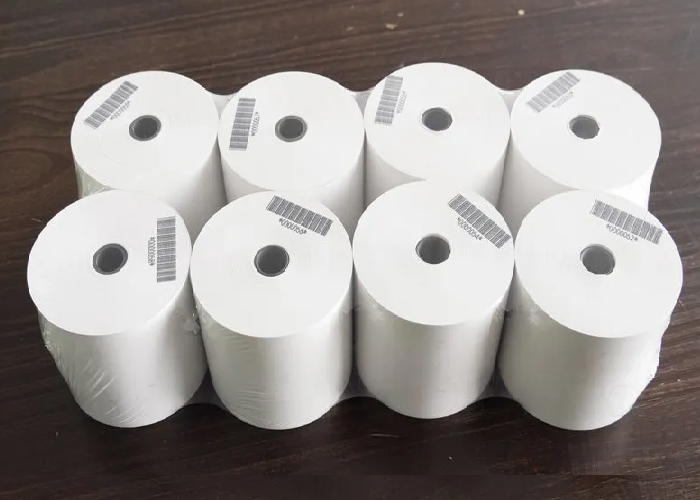

- – Thermal receipt paper roll
- – ATM roll
- – ECG roll
- – Carbonless copy paper roll
- – POS till roll
- – Adding machine roll
- Siemens PLC and MCGS touch control screen, all parameters can be set on screen.
- Master motor is Siemens Inverter Motor, controlled by Inovance AC drive.

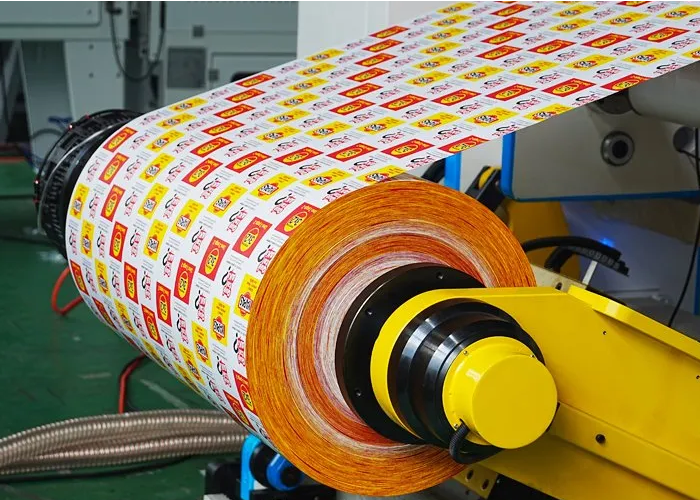

- Shaftless unwind stand with hydraulic-driven automatic jumbo roll loading.

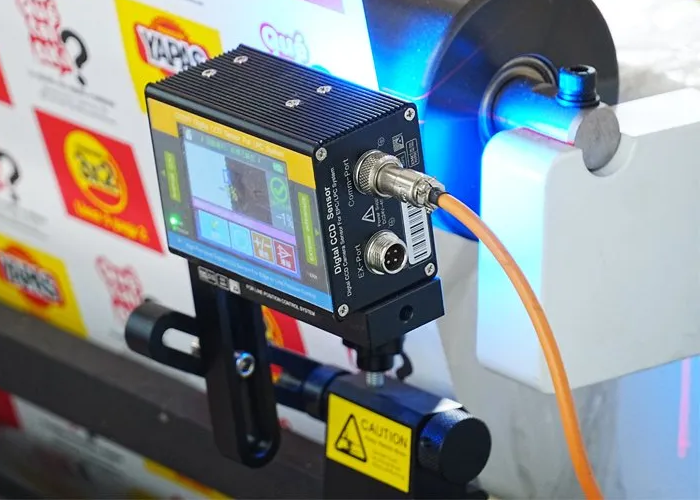

- CCD camera for printed paper monitoring.
- Automatic vacuum core sucker (Patented).

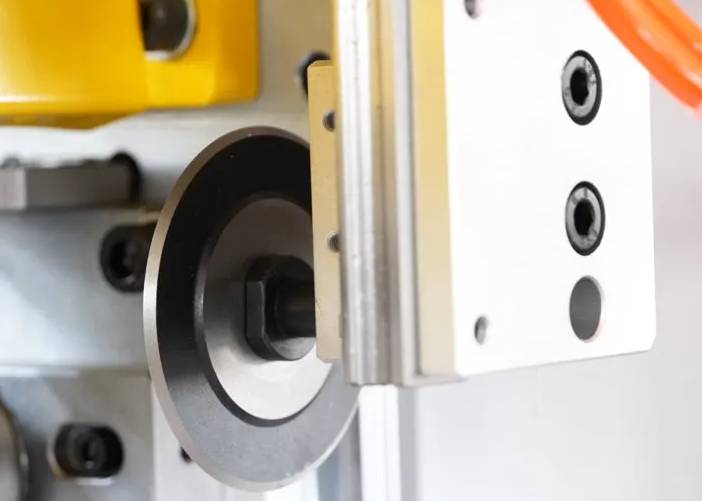

- Upper and lower circular knives for shear cutting.
- Automatic tucker for fast rewinding activation.
- 2 sets of loadcell sensors and full automatic tension control system.
- Rotary encoder for automatic slit length measurement.
- 90° vertical lay-on roller and banana roller prevent overlapping.
- Integrated finishing line: breaker, hammer, and conveyor.

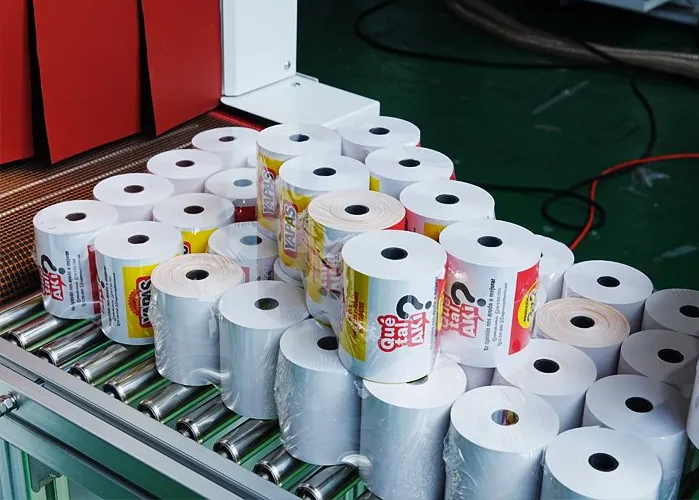

- Automatic hot shrink packager (or other packaging options available).
