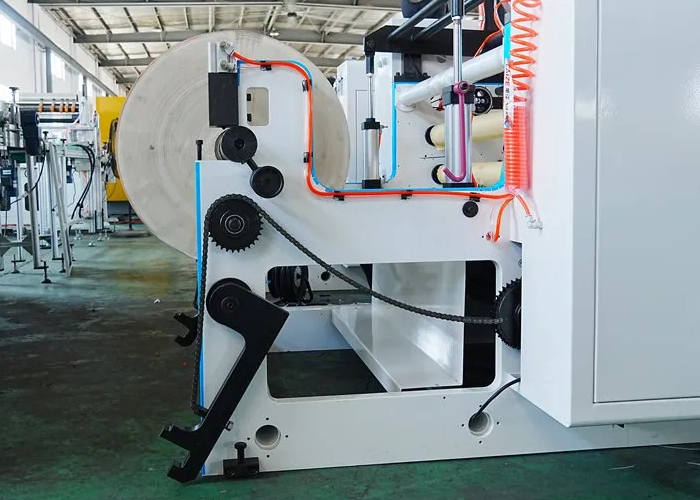

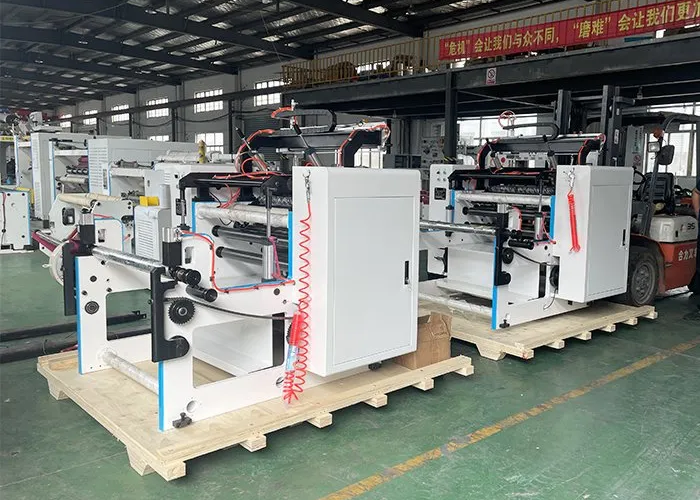

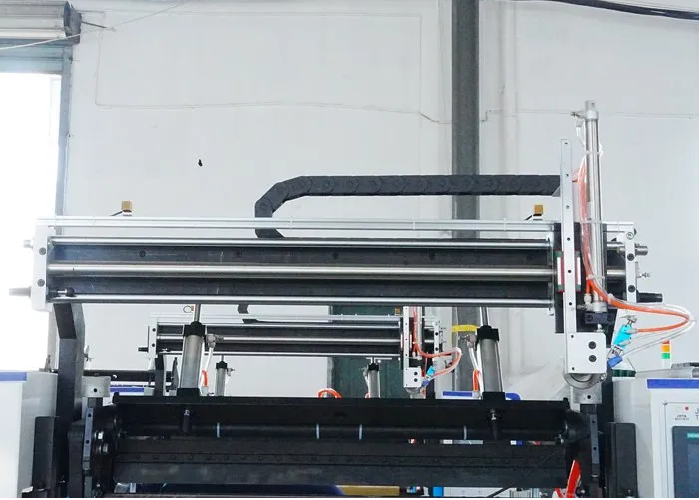

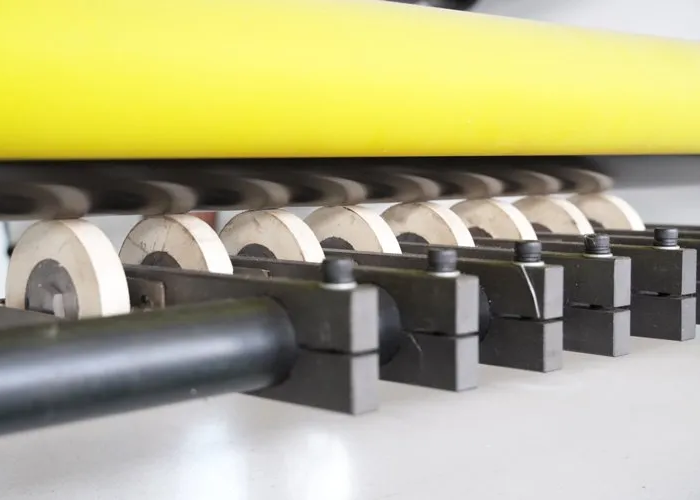

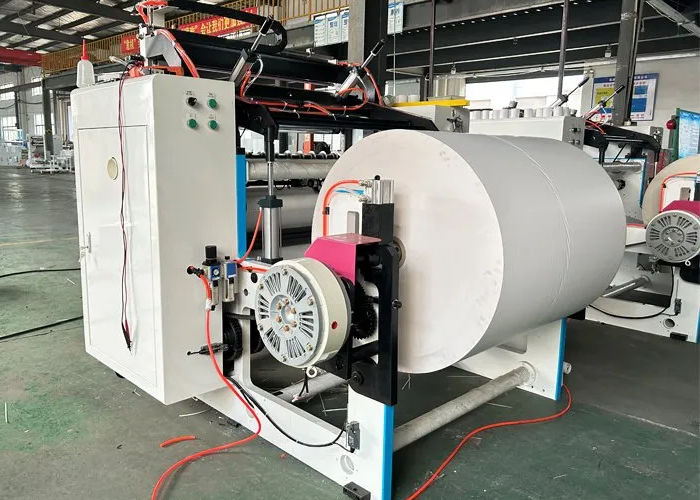

900mm Width Thermal Paper Roll Slitting Machine
The Most Popular Model Thermal Paper Roll Slitting Machine
- Most Popular Thermal Paper Roll Slitting Machine all over the world
- Siemens PLC and HMI for intelligent control
- Company Structure with Convenient Operations
- 7 x 24 hours online service and fluent English communication ability
| Item | 900mm width thermal paper roll slitting machine |
|---|---|
| Max. Parent Web Width | 900mm |
| Max. Parent Web Diameter | 1000mm |
| Max. Rewinding Diameter | 160mm |
| Min. Slit Width | 25mm |
| Max. Speed | 150m/min |
| Unwinding Shaft | 3” air expanding shaft |
| Rewinding Shaft | 0.5”, 1” are available (or as your request) |
| Voltage | 3 phase, 4 wire, 380V/220V |
| Power | 2.95Kw |
| Weight | 1200Kg |
| Overall Dimensions (L*W*H) | 1900mm x 1900mm x 1500mm |
