TMP-SLT-1600C Kraft Labels Paper Slitting Rewinding Machine
Kraft Labels Paper Roll Cutting Slitting Machine
- Ideal Cutting Slitting Machine for Paper Tube Machine
- Famous brand AC Drive and Siemens inverter motor
- Youdao ultrasonic EPC (Edge Position Control)
- Taiwan Pneumatic brake (40Kg/m2) for unwinding tension control
- Banana roller to avoid overlapping problems
| Specification | |
| Model | TMP-SLT-1600C Kraft Labels Paper Slitting Rewinding Machine |
| Max. Unwinding Width | 1600mm |
| Max. Unwinding Diameter | 1500mm |
| Max. Rewinding Diameter | 1500mm |
| Min. Slit Width | 80mm |
| Paper Thickness Range | 50gsm-800gsm |
| Max. Speed | 200m/min |
| Unwinding/Rewinding Shaft | 3” Air Expanding Shaft |
| Weight | 4000Kg |
| Dimension | 3500mmx4000mmx3000mm |

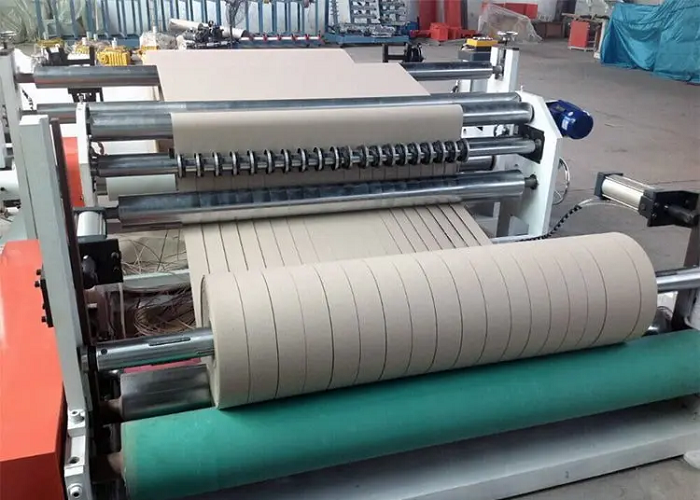

| TMP-SLT-1600C kraft paper slitting rewinding machine is able to convert paper, stickers, non-woven fabric jumbo rolls to narrower small roll. | |
| 1. Microcomputer control, dashboard panel. | |
| 2. Famous brand AC drive and Siemens inverter motor, ensure machine working smoothly, furtherly save electricity cost. | |
| 3. Youdao ultrasonic web guiding system, ensures the accuracy of material position. | |
| 4. Hydraulic mother roll loading system, it is convenient jumbo roll loading, operator’s labor consumption could be saved. | |
| 5. Pneumatic brake (40Kg/m2) 1pc from Taiwan, strong braking force for unwinding tension control. | |
| 6. Banana roller to avoid overlapping problems. | |
| 7. High precision regulator controls the pressure of rewinding shaft, furtherly improves the accuracy. | |

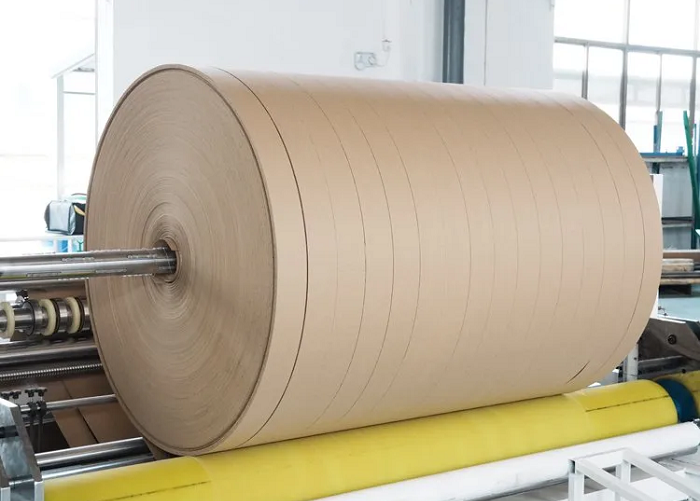

| 8. Surface rewinding, makes finished roll flat and level. | |
| 9. Equips with automatic meter counter, emergency switch. | |

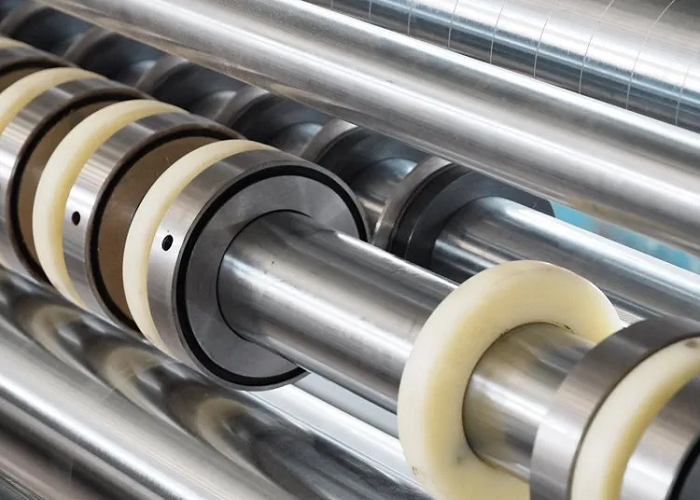

| 10. Round blade score cutting, driven by proactive motor. | |
| 11. The blade material is 9CrSi. | |
| 12. CNC processed high quality parts. | |
| 13. Fully automatic tension control system for keeping constant in whole machine running process. | |
| 14. Edge waste discharging tray. | |
