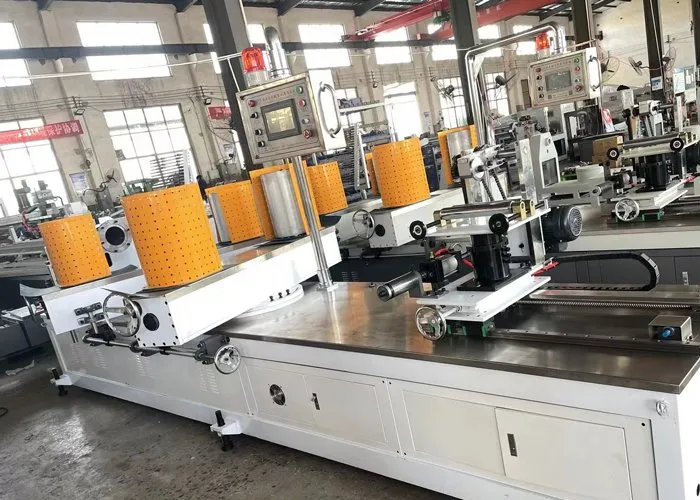

TMP-200A Paper Core Winding Machine
Big Size Paper Tube Making
- Paper Layer 3-24
- Paper Core Thickness 1mm-18mm
- Paper Core Diameter 20mm-254mm
- Paper Core Length 500mm-5000mm
| Parameters | |
| Item | TMP-200A paper core winding machine |
|---|---|
| Paper Layers | 3-24 |
| Paper Core Thickness | 1mm-18mm |
| Paper Core Diameter | 20mm-254mm |
| Paper Core Length | 500mm-5000mm |
| Max. Machine Speed | 0-20m/min |

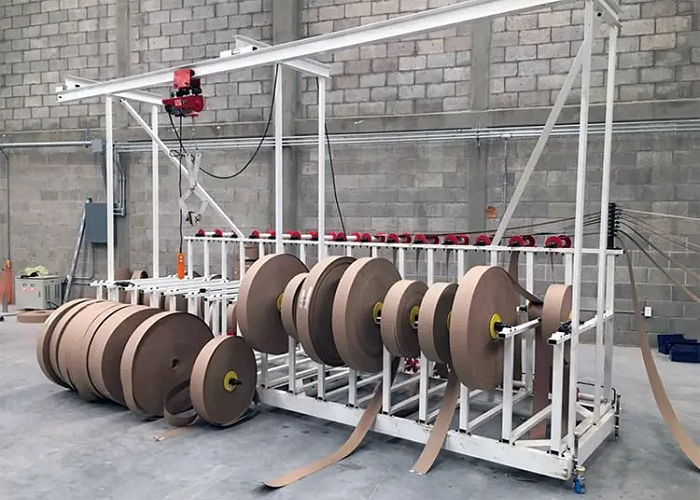

| Raw Material | |
| Kraft Paper | |
| Features | |
| Delta PLC control and automatic meter counter, all the parameters can be set up on the control panel. | |
| HIGHTECH touch screen from Taiwan, all the parameters can be displayed on the HMI interface, easy operation. | |
| Imported frequency inverter drives the AC motor, the machine working is more stable. | |
| Independent electrical control box equips with input plug, the after-sale troubleshooting and repairing will be much easier. | |
| Dialogue monitor, automatic operation memory and store, automatic fault display. | |
| Multi cutter for cutting the paper core, high precision, and more bearable. | |
| Extreme quiet design transmission parts after special treatment, with high efficiency and low maintenance. | |
| Double side glue coating devices, the paper core is more sticky and stronger. | |
| 2 photocells for the paper core length tracking, after reaching the preset length, the paper core will be cut off. | |
| Circuit system with remote control function, if circuit or machine fail, the engineer can assist you in solving problems via machine communications tools and software. | |
