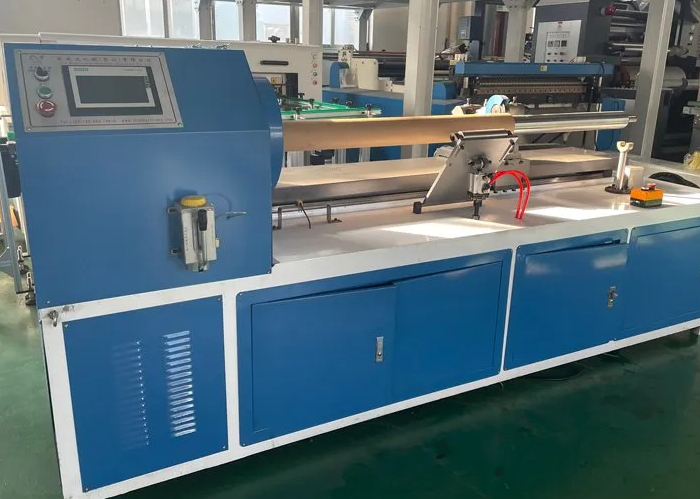

TMP-1500C High Precision Paper Core Cutting Machine
Giant Client Sonoco's Choice
- Each cut just takes only 0.5s
- PLC control and touch screen HMI
- Automatic tri-locker to clamp the paper core
- 121 years old US company Sonoco’s choice
| Parameters | |
| Tube Diameter |
25mm-200mm |
| Tube Length |
10mm-1500mm |
| Tube Thickness |
5mm-18mm |
| Blade Moving Speed |
300mm/s |
| Cutting Precision |
0.1mm |
| Mandrel Rotating Speed |
150RPM-1000RPM |
| Servo Motor |
0.75Kw |
| Working Pressure |
0.4Mpa-0.6Mpa |
| Rotating Motor Power |
4.0Kw |
| Voltage |
380V, 3 phase, 50Hz |
| Total Weight |
1000Kg |
| Overall Dimension |
3000mm x 1100mm x 1370mm |
| Specifications | |
| 1. Each cut only takes 0.5s. | |
| 2. PLC control system and touch screen HMI, all the parameters could be preset and displayed on the screen. | |
| 3. Automatic stop function, after each cut, the machine will stop automatically. | |
| 4. Automatic tri-locker to clamp the paper core. | |

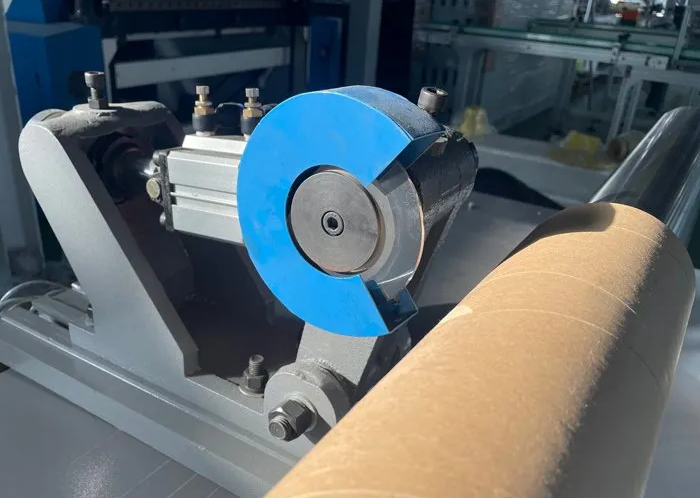

| 5. Servo motor drives round knife, Yaskawa AC drive controls servo motor, high precision. | |
| 6. Auto-diagnosing function, all the errors could be displayed on the screen, easy for repairing. | |
| 7. CNC processed high precision tungsten steel blades, cutting precision is around 0.1mm. | |
